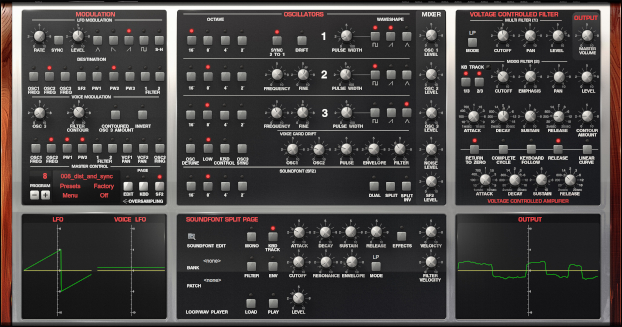

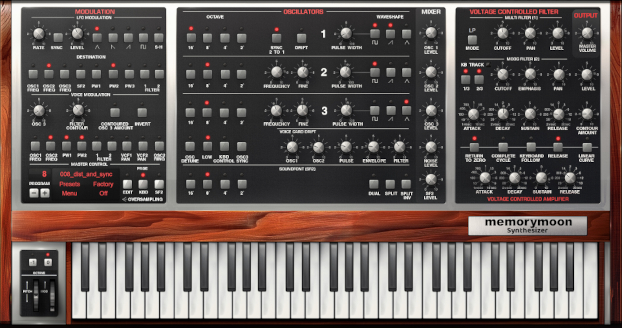

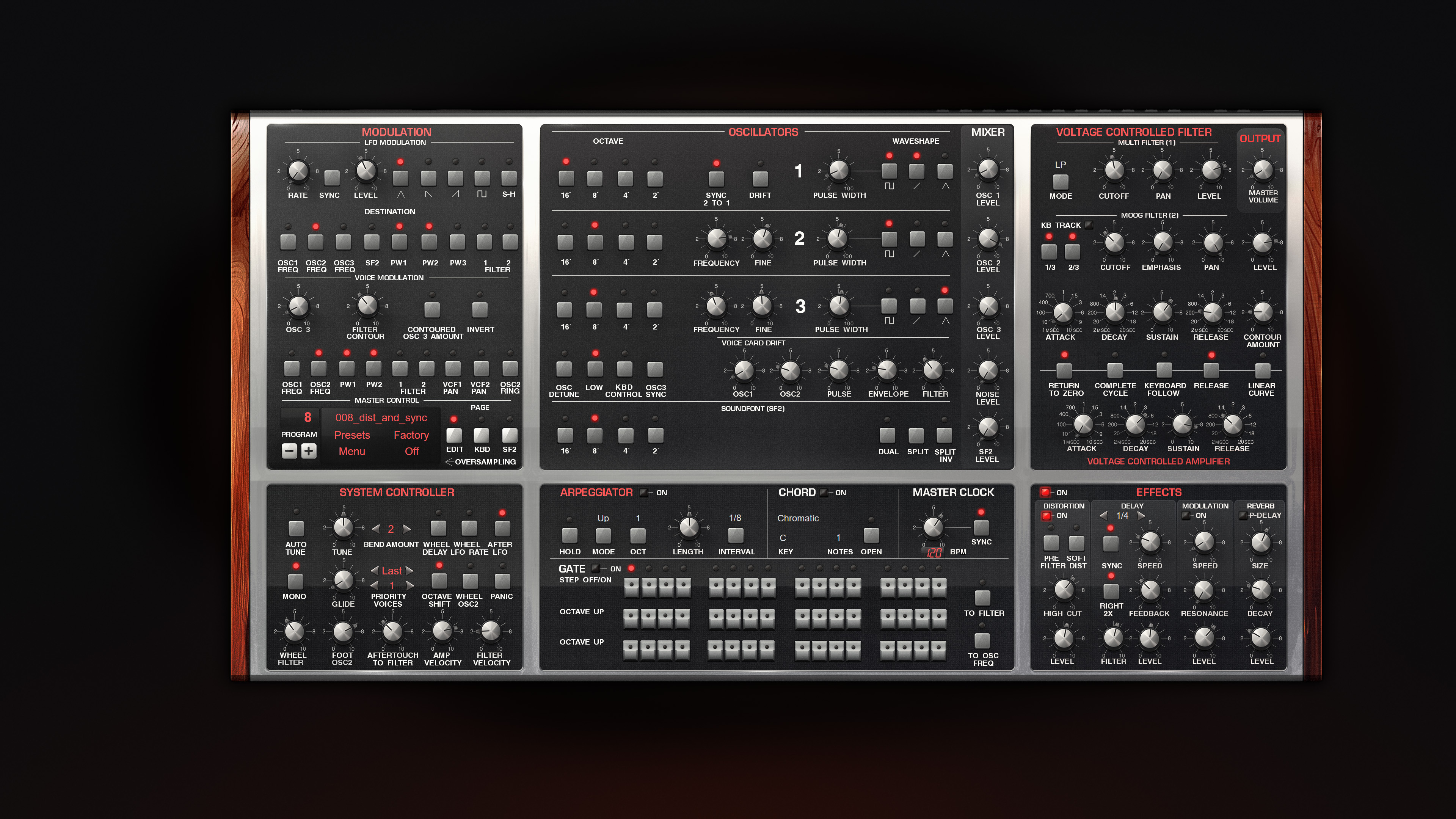

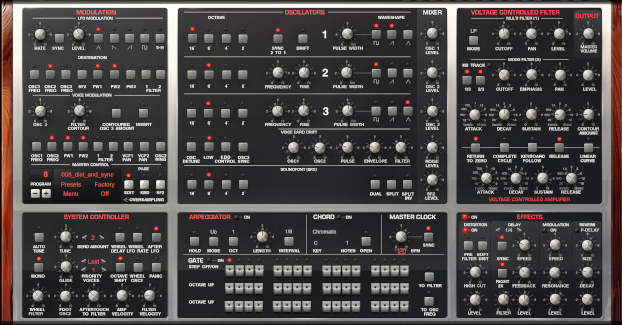

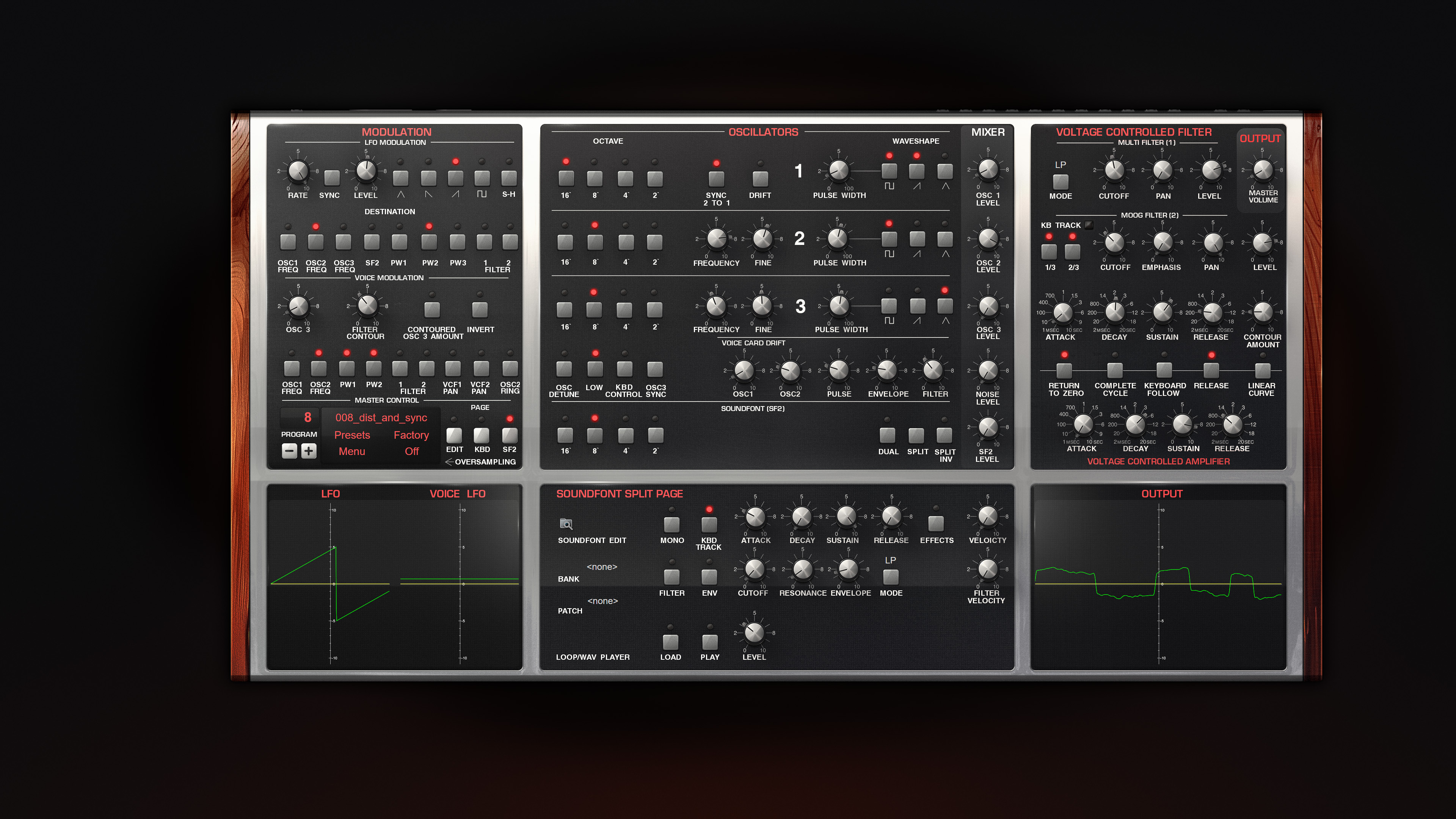

Higtech skin made by Scott Kane in 2 sizes: 1080x1920 and3840x2160 (4k):
Click to view a larger image!

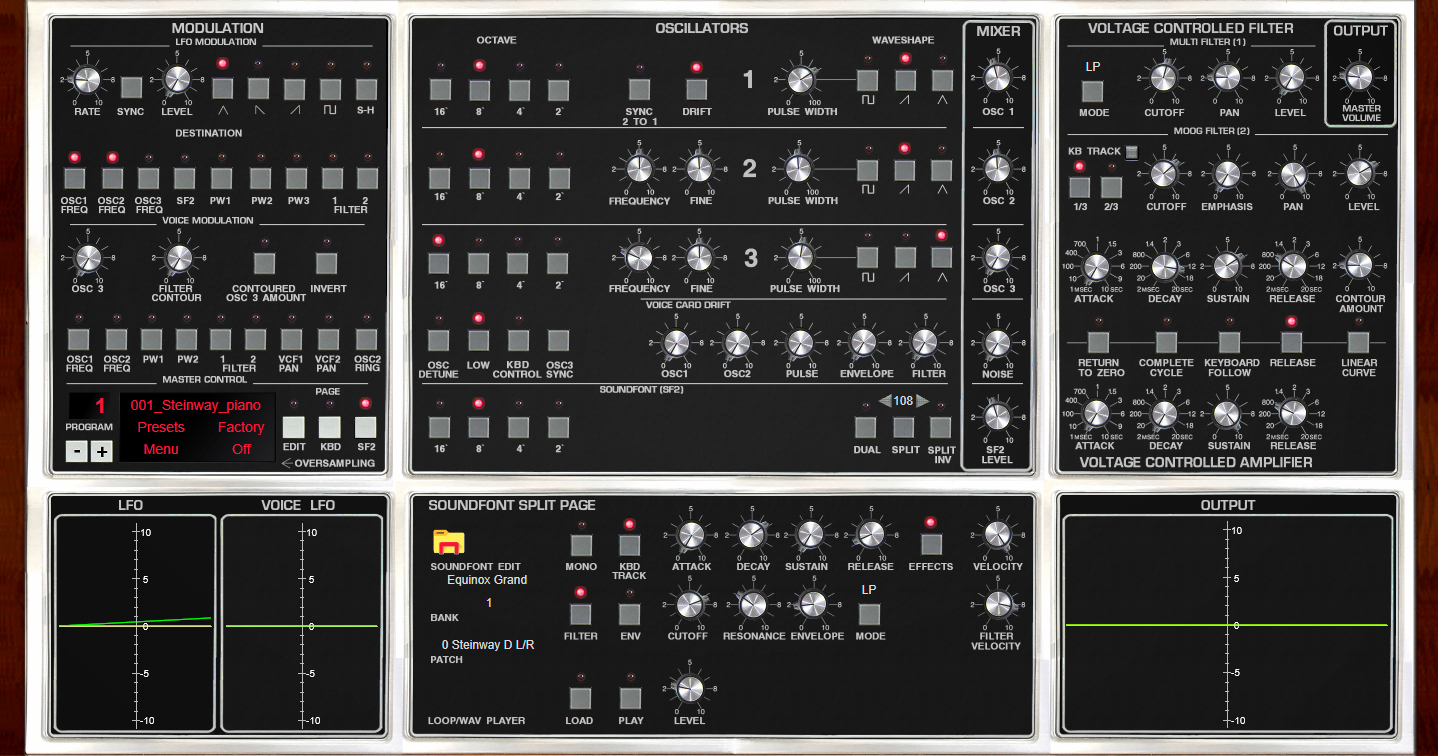

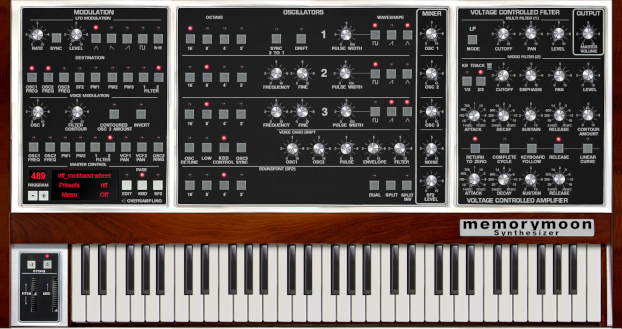

Hardware skin in 2 sizes: 1080x1920 and 3840x2160 (4k):

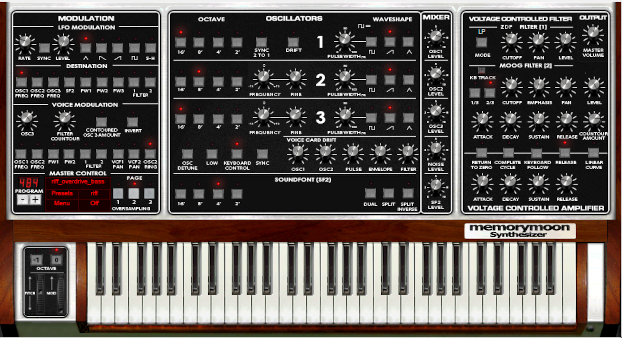

The small skin for 720x1280 made by Robert Wenz

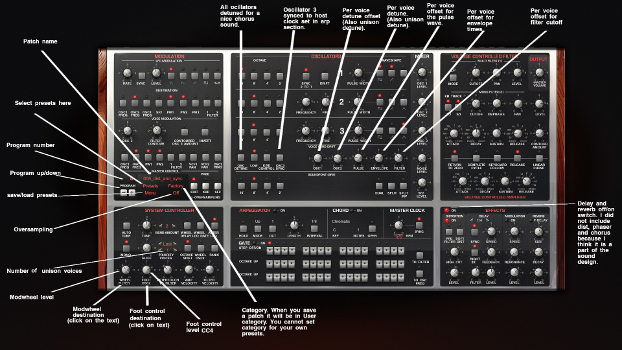

Help image for basic operation:
Memorymoon FAQ MIDI CC
I needed a fat synthesizer that could compete with loud guitar amplifiers and sound better than distorted guitar sounds.
So I built the memorymoon.
Version 2.0 is completely new, and all sound-generating components have been replaced.
Credits: Built with Synthedit by Jeff McClintock. Modules by: TD - Time Domain Modules, Roy-Tech, Elena Design and Sasha. Betatester: Peter Werner.
VST3 versions:
In VST3 you have to install the presets manually by copying the sounds in this zip to:
Documents/VST3 Presets/gunnar ekornaas/memorymoon .
Here is the zipped sound library:
1080x1920 size vst2.
1080x1920 size vst3.
3840x2160 (4k) size vst2.
3840x2160 (4k) size vst3.
Memorymoon v2.0
64 bit vst2 and vst3
Demo with audio dropouts every 20 seconds
No Mac version!
You can select Paypal or credit-card.
Memorymoon has 6 voicecards with 3 oscillators. Soundfont section has 10 note polyphony.
You can set drift values for osc1 tuning, osc2 tuning, pulse-width, filter cutoff and envelope times to emulate the variations between voice cards in analog synthsizers.
Unison will make a single note play from 1-6 voicecards at the same time.
The sound is very overdriven. Mixer levels over 50 will create distortion in all oscillators.
Filter2 has built in distortion and filter2 level knob will set the overdrive gain.
The distortion effect at output can be inserted at output stage, or before the filter.You can have 3 stages of distortion before the filter: VCA overdrive in mixer, dist fx set to "before filter" and filter2 has built in distortion.
It is a live-instrument. Arpeggiator, osc3, LFO and delay can be synced to host clock, or you can set tempo to manual and adjust with the tempo knob.(Arpeggiator section).
CC contols that are present in the standard version: Master volume: Both CC7 and CC11 expression pedal at the same time. (You can unlearn CC7 by right clicking the master volume knob.) Mod wheel: CC1. Foot filter knob (in the control section) has CC4 foot control as source.
In the downloads I send there is a special version with cc numbers preassigned so you can use controller templates for Novation SL and remote series, and Edirol and Roland controllers and Aki MPK49. CC assignments are stored independently in each patch. So this versions have the CC setup stored in every patch.
Price is 30 US dollar. 64 bit vst2 and vst3.Windows only.

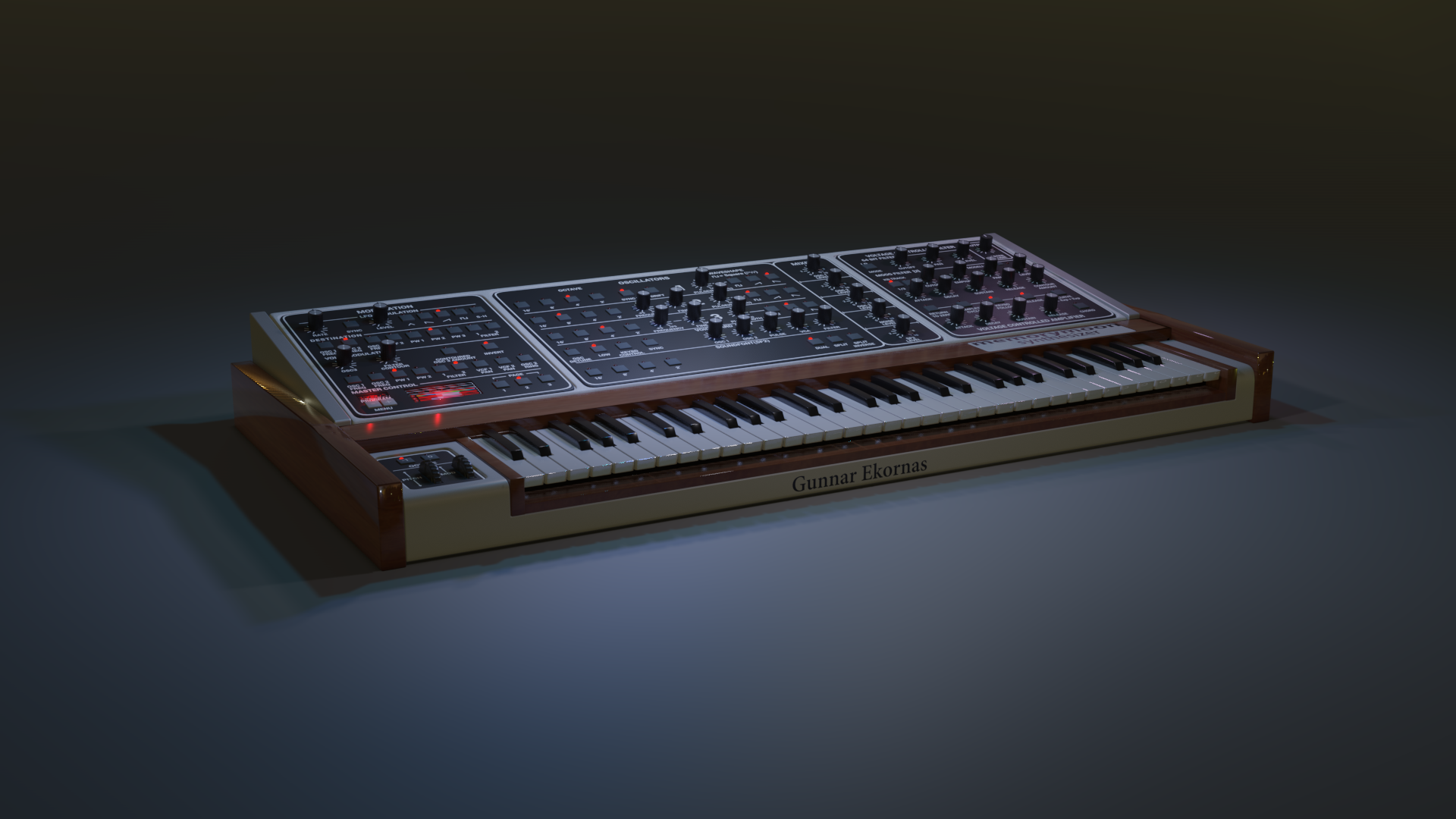

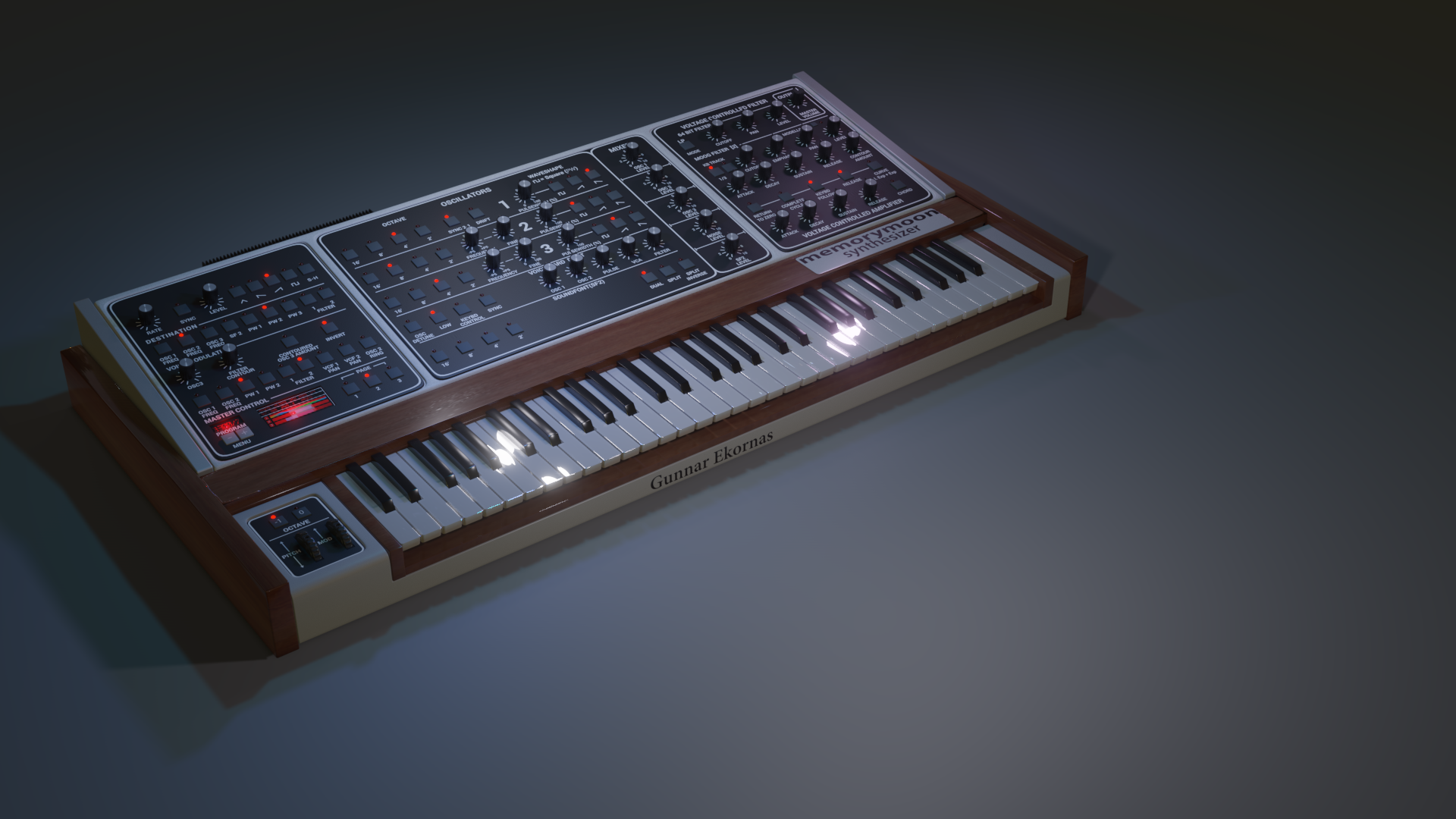

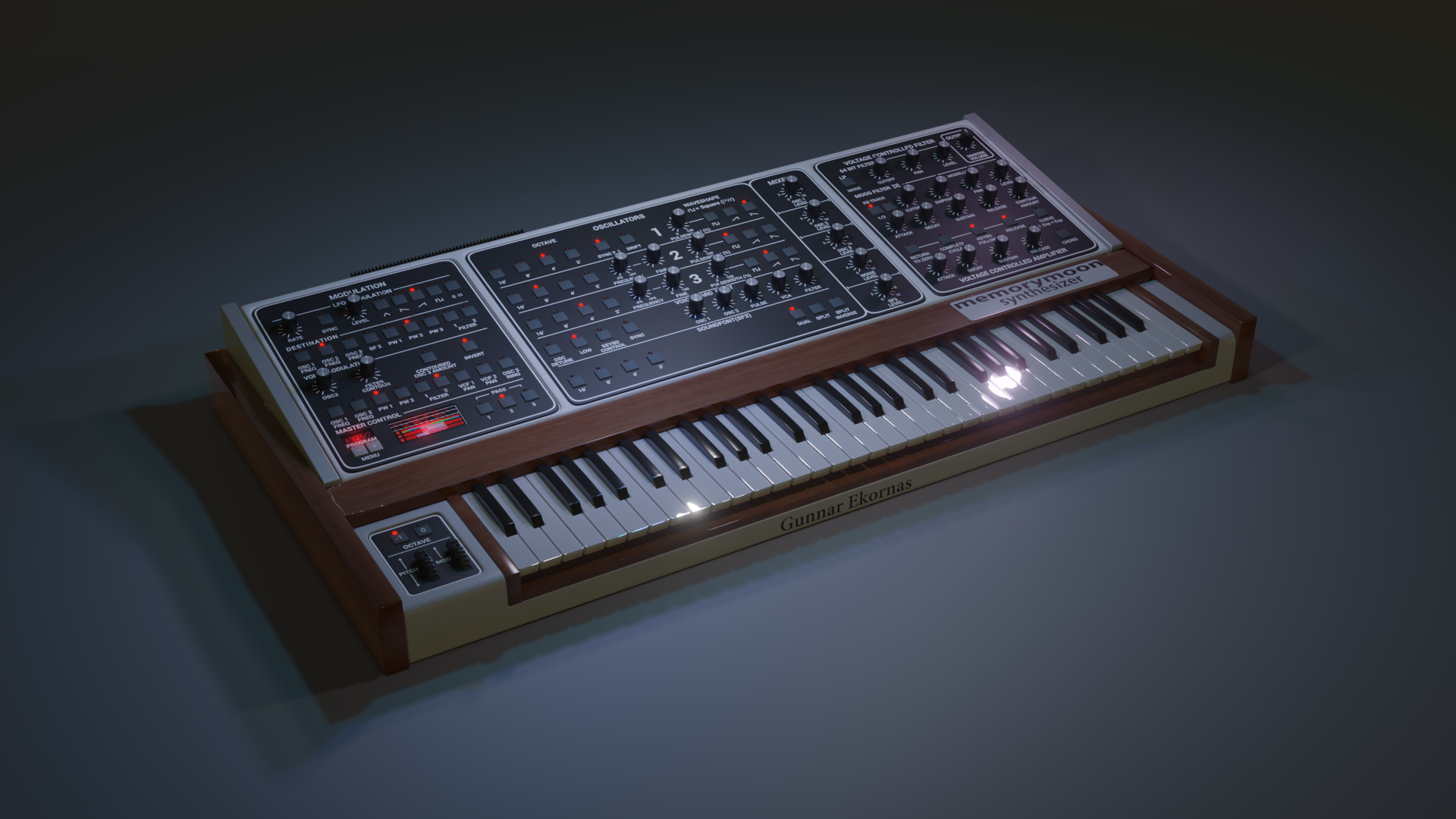

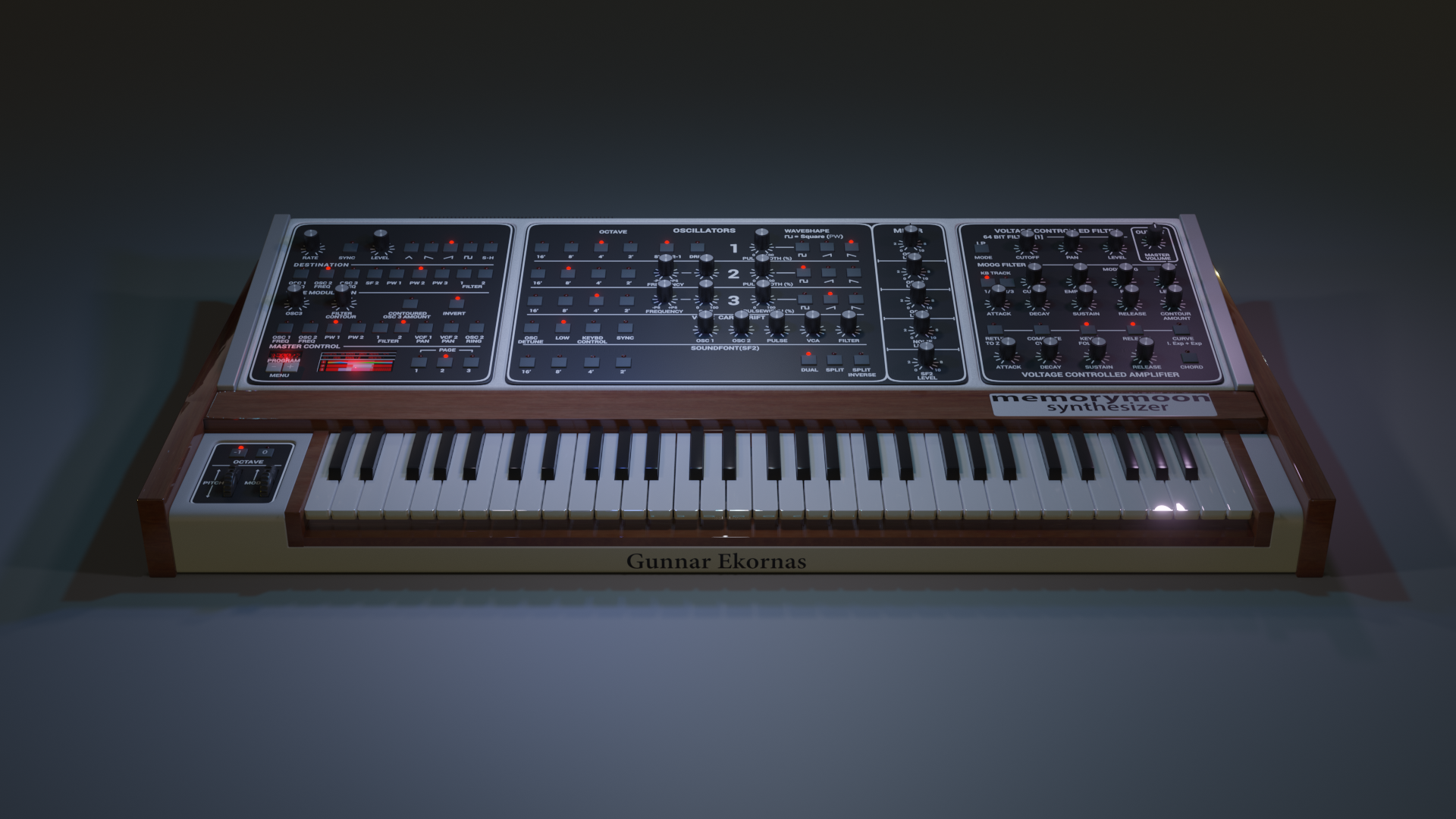

3D images of Memorymoon made by Graphomet, click on the image to view the big version:
Original Moog Memorymoog owners manual
